Industrial robot arm RS3 pick and place robot with high workspace utilization scara robot
Description:

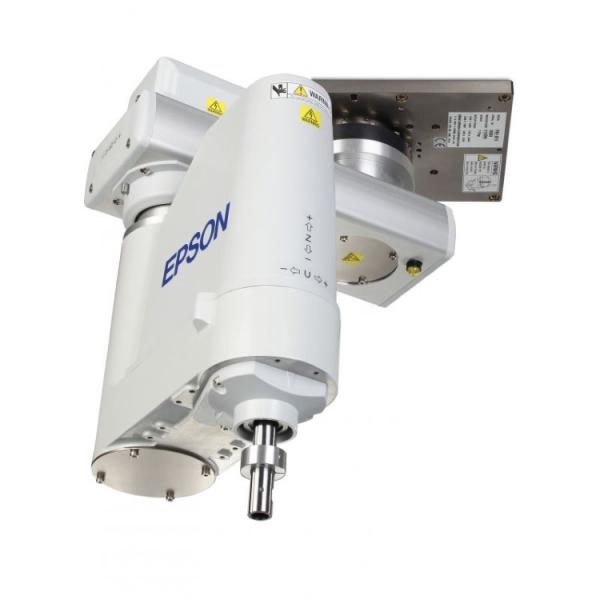

The Spider RS3-Series is a new species of four-axis SCARA robot, designed like a human arm, to work on horizontal planes. It's ideal for fast pick-and-place applications and assembly processes.
Core Specifications:
Arm Length / Reach:J1+J2: 350 mm (175+175 mm)
J3 (Z): 130mm (100 Clean)Repeatability:J1 + J2: +/-0.010mm
J3: +/-0.010 mm
J4: +/-0.010 degPayload (Kg):Max: 3 Kg
Rated: 1 KgCycle Time:RS3-351: 0.34 secsMaximum Operating Speed:J1+J2: 6,237 mm/sec
J3: 1,100 mm/sec
J4: 2,600 deg/secOptional Arm Configurations:Clean & ESD: ISO 3 Clean & ESDOther:Insertion Force: 150N (15.29 kgf)
U Inertia (Max/Rated): 0.05 / 0.005 kg*m2
Other Specifications:
Motor Wattage:J1: 400 Watts
J2: 200 Watts
J3: 150 Watts
J4: 100 WattsUser Lines:Electric: 15 lines (15 pin D-Sub)
Air: 3 (6mm x 2, 4mm x 1)Environmental:Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight:RS3-351: 17KgDimensions:Mounting Hole Footprint(mm): 95 x 95 x 160mm (6-M6)
Z Axis Diameter: 16 mmRobot Cables:3M (standard), 5M (optional), 10M (optional)
Feature:
- Compact, precise SCARA robot: Designed for pinpoint accuracy in very small workspaces
- Extensive configuration options: Available in various arm lengths and mounting options
- Short cycle times: Cycle times can be as low as 0.41 seconds, even during extended use
- Fully integrated: Complete Epson solution including robot, controller and software
- Versatile and flexible: An ideal solution for applications from automotive to pharmaceutical
-
|
item
|
value
|
|
Applicable Industries
|
Other
|
|
After Warranty Service
|
Video technical support, Online support, Field maintenance and repair service
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
Epson
|
|
Power
|
380V
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
|
Online support
|
|
Product name
|
Cobot RS3 robotic arm high workspace utilization scara robot arm
|
|
Arm length
|
J1+J2: 350 mm (175+175 mm)
|
|
Repeat positioning accuracy
|
J1 + J2: +/-0.010mm
|
|
Payload
|
1kg/3kg
|
|
Available controllers
|
RC180 Micro PowerDrive
|
|
Standard cycle time (w / 2kg payload)
|
RS3-351: 0.34 secs
|
|
Max operating speed
|
J1+J2: 6,237 mm/sec
|
|
U moment of inertia (max / rated)
|
0.05 / 0.005 kg * M2
|
|
Insertion force
|
150n (15.29 KGF)
|
|
Mounting hole diameter (mm)
|
95 x 95 x 160mm (6-m6)
|
Our service:
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Application:
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
Company infomation:
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ:
Q.How Long will You Need before Delivery?
A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees?
A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
